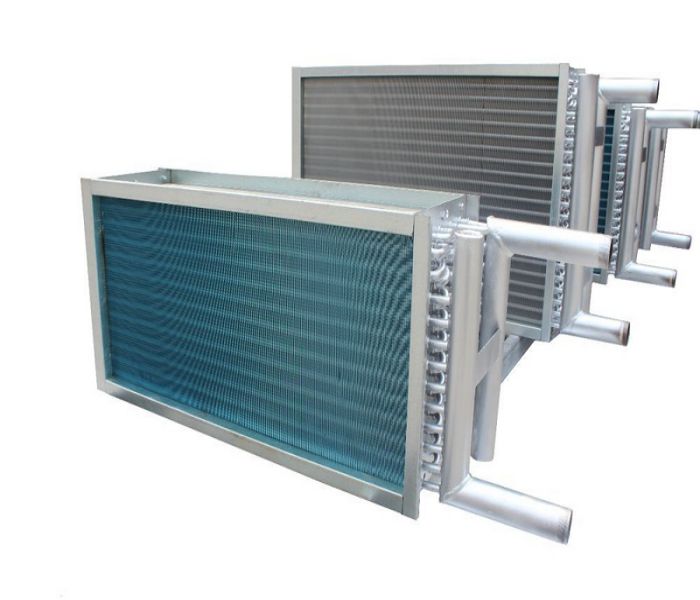

Water/fluid Cooler Copper

www.qbheatexchanger.com

General Information

Water/liquid cooler is used to cool the air using the chilled water/liquid in the core tube. The chilled water brings the absorbed heat back to the refrigeration system, release heat and lower temperature, then brought back to the cooling coil again to cool the air, and achieve the purpose of cooling and dehumidification. Core tube is normally made of copper; expanded copper or expanded aluminum structure is applied for fins, which enhances the heat transfer performance of the cooler. Other materials are also available upon request.

Field of Application

-HVAC industry

-electronic industry

-pharmaceutical industry

-Industrial and commercial refrigeration

Specification

Advantage:

-good heat transfer performance

-compact structure

-long life and safe

Core tube material: copper

Fin material: aluminum, copper

Tube/fin bond: expanded

Tube arrangement: staggered

Core tube external diameter: φ15.88

Core tube wall thickness: 0.75mm

Fin thickness: 0.4mm

Fin spacing: 3mm

Temperature range: 5~30℃

Order Information

P/N Description: WC-XYZ-N

Note: X should be replaced into CO

Y should be replaced into CO or A

Z should be replaced into EP

N means the power needed

CO-copper

A-aluminum

EP-expanded

More info: qbheatexchanger.com
