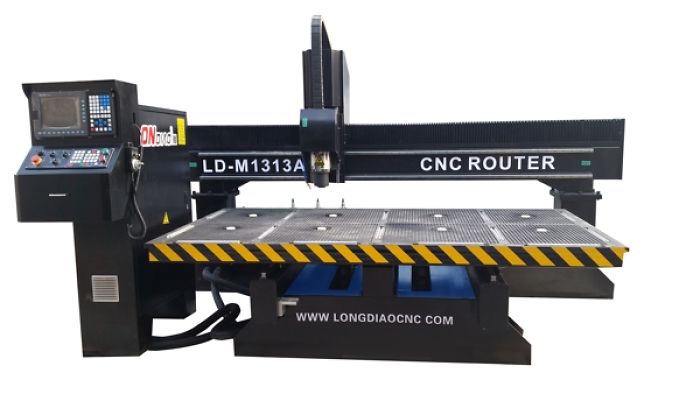

Ld M1313a Automatic Tool Change Machining Center
Applicable field:
1. Mini word acrylic highlight processing center and organic glass engraving machine: The mini lighting words, acrylic cutting, engraving, chamfering, mirror effect. Processing of acrylic panels (TV, DVD and other acrylic panels).Non ordinary engraving machine can’t match. No longer need to polish after processing.
2. Aluminum processing: Aluminum sheet cutting, drilling, engraving, aluminum processing.
3. Processing center of insulating forming parts and laminated board processing center: Mainly used in transformer factory, insulation material factory production of large transformer insulation, laminated board, laminated board, the processing of a strong lamination.
4. Aluminum plate processing center and aluminum honeycomb panel processing center: Train interior, aircraft interior, track vehicle equipment, automotive interior, aluminum curtain wall.
5.Longdiao CNC Machining Center can be used in woodworking numerical control engraving machine and woodworking cabinet door processing center: Wood furniture, cabinet doors, acrylic products, exhibition, GRG, plastic plate
6.Wax mold processing center: GRG,GRC, Indoor and outdoor plaster
Parameter
Working area
1300×1300×200mm
Transmission
XYZ axis with import PMI ball screw
Quantity of magazine tool
4 magazine tools import from Italy
Max.speed
35m/min
Vacuum performance
230L/h（7.5KW special vacuum pump）
Knife handle diameter
Φ3.175 φ4 φ6 φ12.7 φ14
Command
HPGL、G code
Working accuracy
0.005mm
Spindle
Italy HSD 9.0KW air cooling (with ATC)
Spindle speed
0-24000rpm
Self-lubrication system
guide screw automatic lubrication system
Working style
YASKAWA servo drives
XYZguide
Taiwan HIWIN square straight line （Y axis 30 guide，X Zaxis 25 guide）
Control system
NK300 automatic tool change system（or SYNTEC from Taiwan）
Moving mode
moving table
This automatic carving machine is suit for diverse complexity products processing, wide functions:
All mechanical, electrical components adopts international top brand products
Our service:
♦ 24 hours technical support online.
♦ We offer detailed User Manual together with cnc router machine
♦ We offer machine operation video free
♦ We offer training in our factory free
♦ Engineers available to service machinery overseas
Longdiao is a famous company with strong corporate culture atmosphere. Rich atc cnc router manufacturing experience make it outstanding among many CNC router suppliers. Do contact us if you are interested in our products.
D-M1313A Automatic Tool Change Machining Center is very popular among countries, it can be applied in many fields with many outstanding features. Longdiao CNC machining center supplier offers various products for you to choose from. Don’t hesitate to contact us now!
More info: en.longdiaocnc.com
