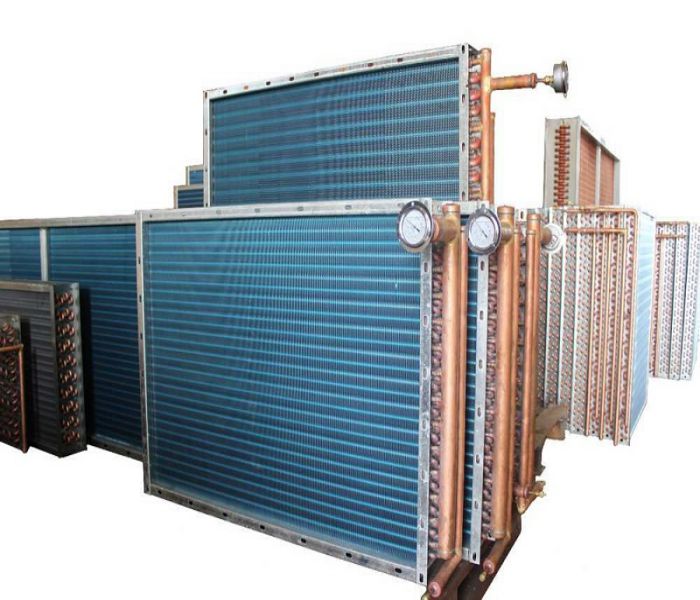

Air Condenser Copper

www.qbheatexchanger.com

General Information

Condenser cooler realizes heat radiation and cooling through refrigerant condensing. During cooling process high-temperature and high pressured air are released from compressor and enters into condenser. Refrigerant remains constant pressure and transfers from gas to liquid during condensing process. Core tube is normally made of copper; expanded copper or expanded aluminum structure is applied for fins, which enhances the heat transfer performance of the air condenser coil.

Field of Application

-HVAC industry

-electronic industry

-pharmaceutical industry

-Industrial and commercial refrigeration

Advantage:

-good heat transfer performance

-compact structure

-long service life and safe

Core tube material: copper, stainless steel

Fin material: aluminum, copper, stainless steel

Tube/fin bond: expanded

Tube arrangement: staggered

Core tube external diameter: φ15.88

Core tube wall thickness: 0.75mm

Fin thickness: 0.4mm

Fin spacing: 3mm

Temperature range: 5~30℃

Order Information:

P/N Description: CD-XYZ-N

Note: X should be replaced into CO, S

Y should be replaced into CO, S or A

Z should be replaced into EP

N means the power needed

S-stainless steel

CO-copper

A-aluminum

EP-expanded
